2015 hot sell X-RAY baggage scanner,x-ray security inspection machine

FOB Reference Price:Get Latest Price
US $8,500-26,000 / Pieces | 1 Piece/Pieces (Min. Order)
Key Company Capacity
Production Capacity >
  • Employees: 51 - 100 People
  • Factory Size: 5,000-10,000 square meters
  • No. of Production Lines: 5
Research & Design >
  • No.of R&D Engineer: 5 - 10 People
  • Production Certification: 6
  • Trademark: 1
Quality Control >
  • No. of In-line QC/QA: 05
Trade Capacity >
  • Export Mode: Using an agent
  • Export Percentage: 98.00%
  • No. of Employees inTrade Department: 6-10 People
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
AN HU SHEN
Model Number:
X-RAY JH-5030A
PENETRATION:
25MM ARMER PLATE
Supply Ability
Supply Ability:
20 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
268*176*233cm
Port
SHENZHEN
Lead Time :
within 20-25 days after getting the payment

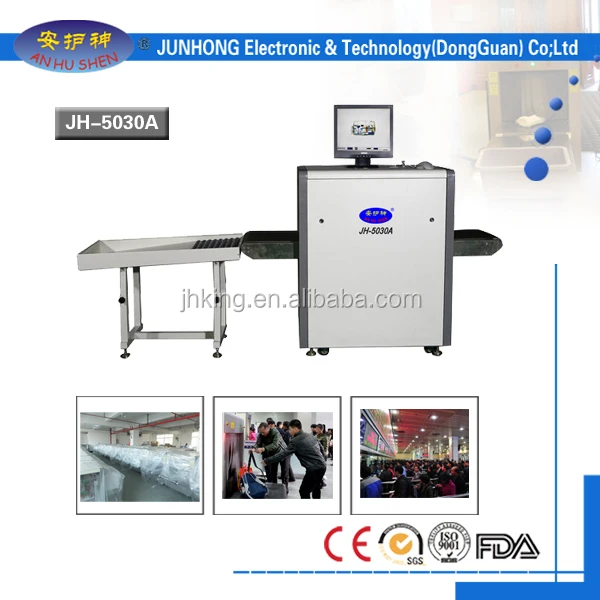

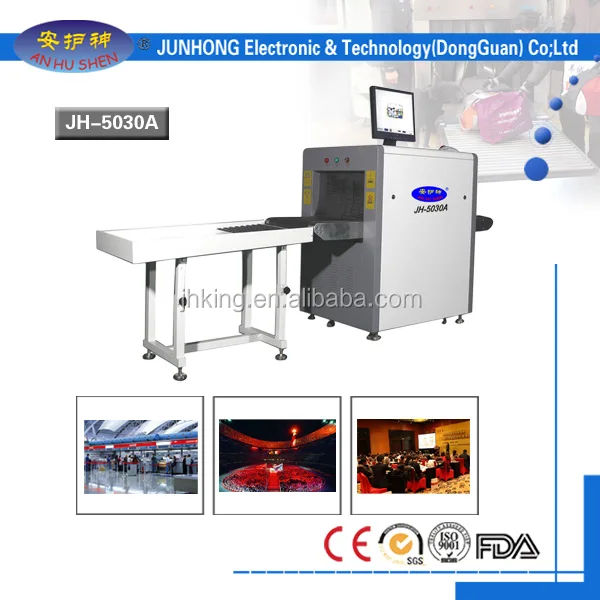

X-RAY luggage scanner

TECHNICAL DATA:

Tunnel Size:                       1000(W)×800(H)mm

Conveyor Speed:                  0.22 m/s

Conveyor Max Load:              200 kg

Single inspection dosage:       < 1.5µGy

Wire Resolution:                  0.1mm metal line

Steel Penetration:                30MM armor plate

Film Safety:                        For ISO 1600

Maximum leakage radiation:      <0.3µGY/H



X-RAY GENERATOR:

Orientation:                                 Vertically Upward

Tube Current:                               0.4~1.2MA(adjustable)

Anode Voltage:                             100~160 KV(adjustable)

Angle:                                       80°

Generator cooling/working periods:    Sealed oil bath with forced air/100%





IMAGE PERFORMANCE SYSTEM:

X-RAY SENSOR: L TYPE PHOTO-DIODE ARRAY DETECTOR, 12BIT



MONITOR: HIGH RESOLUTION 17INCH COLOR LCD DISPLAY



COLOR QUALITY: 24 BIT REAL COLORS



EDGE ENHANCEMENT: OBJECT CONTOUR EDGE IS MORE DISTINCT



SUPER IMAGE ENHANCEMENT: IMAGE DETAIL IS MORE DISTINCT



HIGH PENETRATE STRENGTH DISPLAY: INCREASE BRIGHTNESS OF DARK AREA IN IMAGE TO DISPLAY OBJECT WHICH IS BEHIND HIGH ABSORPTIVITY MASS DISTINCTLY



LOW PENETRATE STRENGTH DISPLAY: INCREASE CONTRAST OF LOW ABSORPTIVITY MASS (EASY TO PENETRATE) TO DISPLAY IT DISTINCTLY



MAGNIFIER: FUNCTION OF PARTIAL ENLARGEMENT



BRIGHTENING/DIMMING: INCREASE BRIGHTNESS OF IMAGE/DECREASE BRICHTNESS OF IMAGE



IMAGE RECURRENCE: DISPLAY PREVIOUS TWENTY IMAGES AND PROCESS ANY ONE OF THEM



IMAGE RESTORATION: RESTORE IMAGE TO INITIAL STATUS AT THE TIME OF STOPPING CONVEYOR



IMAGE STORING: REAL TIME STORE ANY IMAGE AND PROCESS IT IN OPERATION STATUS



MULTI-ENERGY FUNCTION:MULTI-ENERGY COLOR:DISPLAY ORGANIC MATERIAL FOR ORANGE, DISPLAY INORGANIC MATERIAL FOR BLUE, AND DISPLAY MIXTURE FOR GREEN



HIGH ENERGY/LOW ENERCY: SWITCH TO DISPLAY TWO ENERGY TYPE, HIGH ENERGY STANDS FOR METAL ETC., LOW ENERGE STANDS FOR NONMETALLIC



AUXILIAY FUNCTION FOR DRUGS & EXPLOSIVES: HELP TO DETECT SUCH DANGEROUS MATERIAL AS DRUGS & EXPLOSIVES ETC.



AUDIBLE & VISIBLE ALARM: GIVE SOUND AND VISIBLE SIGNAL WHEN CONFORMING TO CONDITION



OPERATING ENVIRONMENT:

Storage Temperature:             -20ºC to 60ºC

Operating Temperature:           0ºC to 45ºC

Relative Humidity:                  20 to 95% non-condensing

System Power:                     220 VAC (±10%) 50±3HZ

Power wastage:                   1.5 KW (Max)

Noise:                              <65DB
